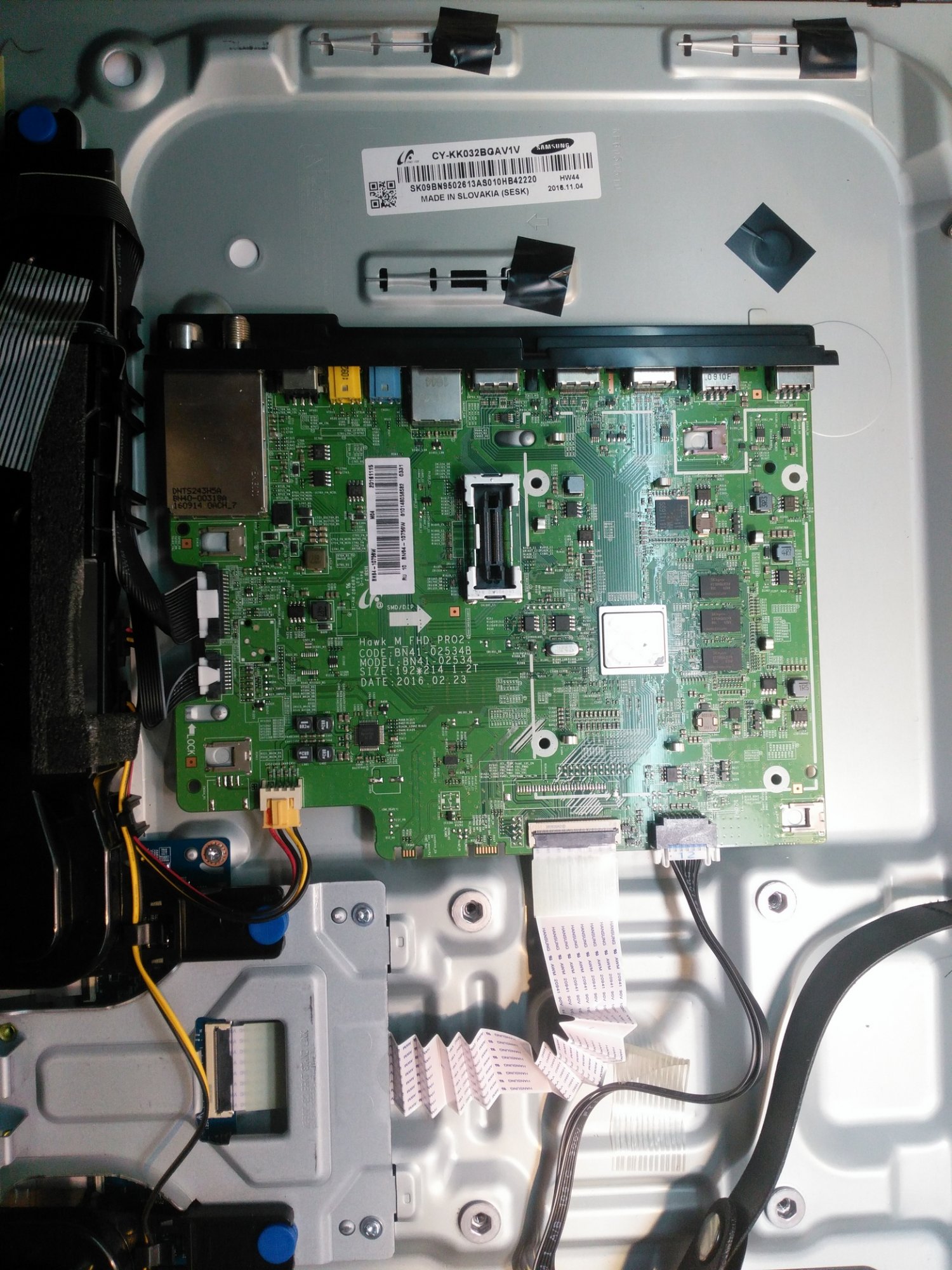

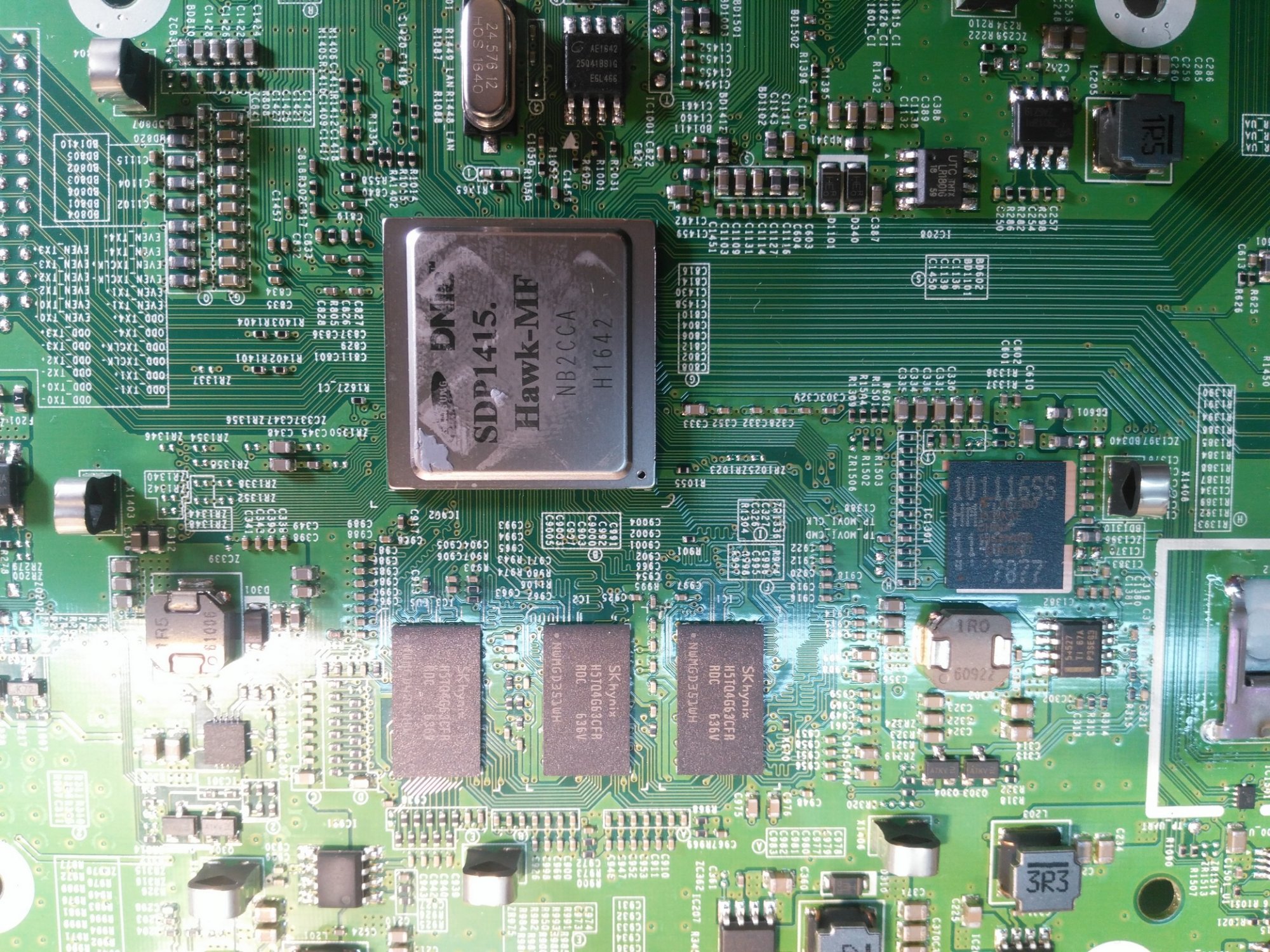

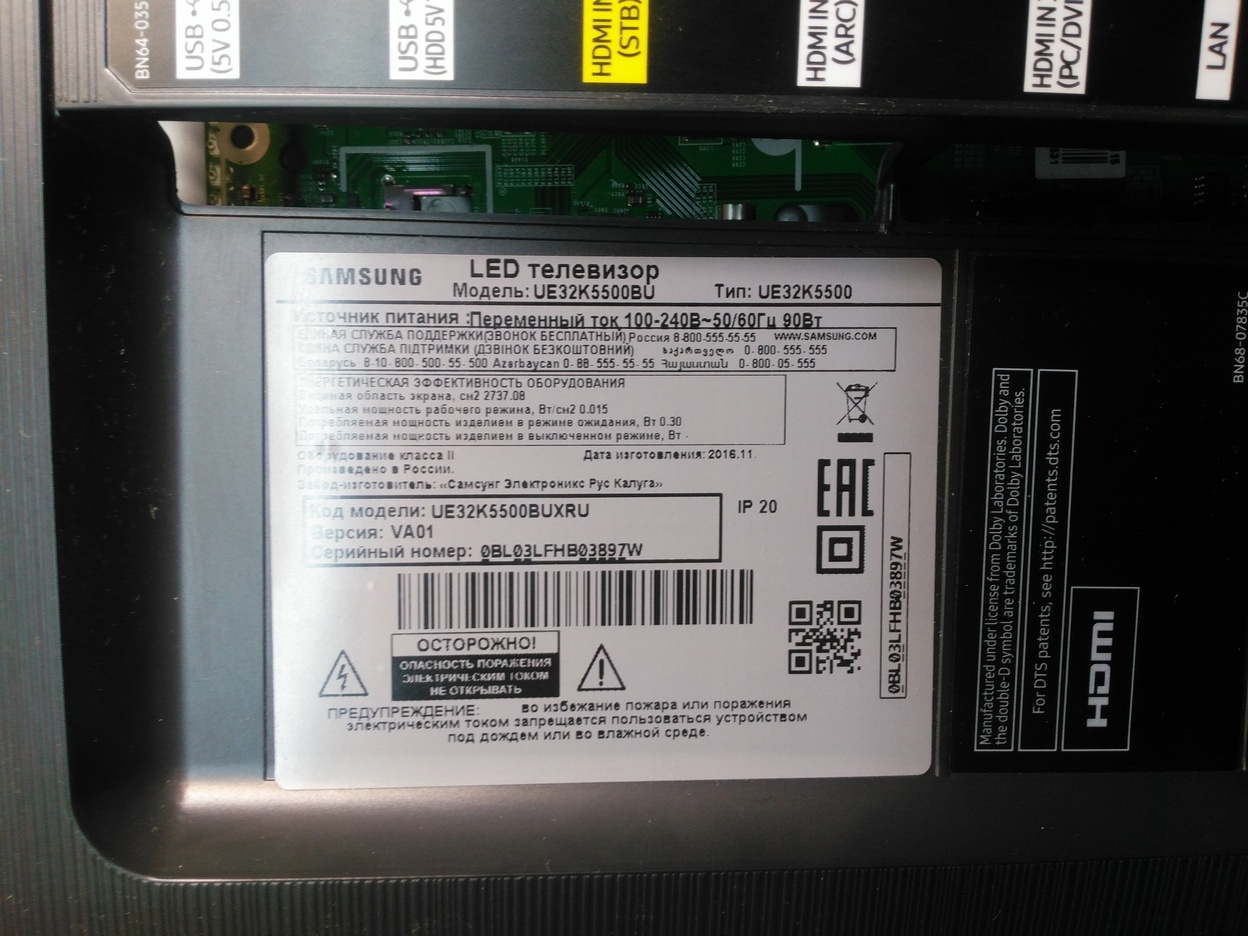

Samsung UE32K5500 main BN41-02534B p/n BN94-10759W также, в архиве, дамп SPI

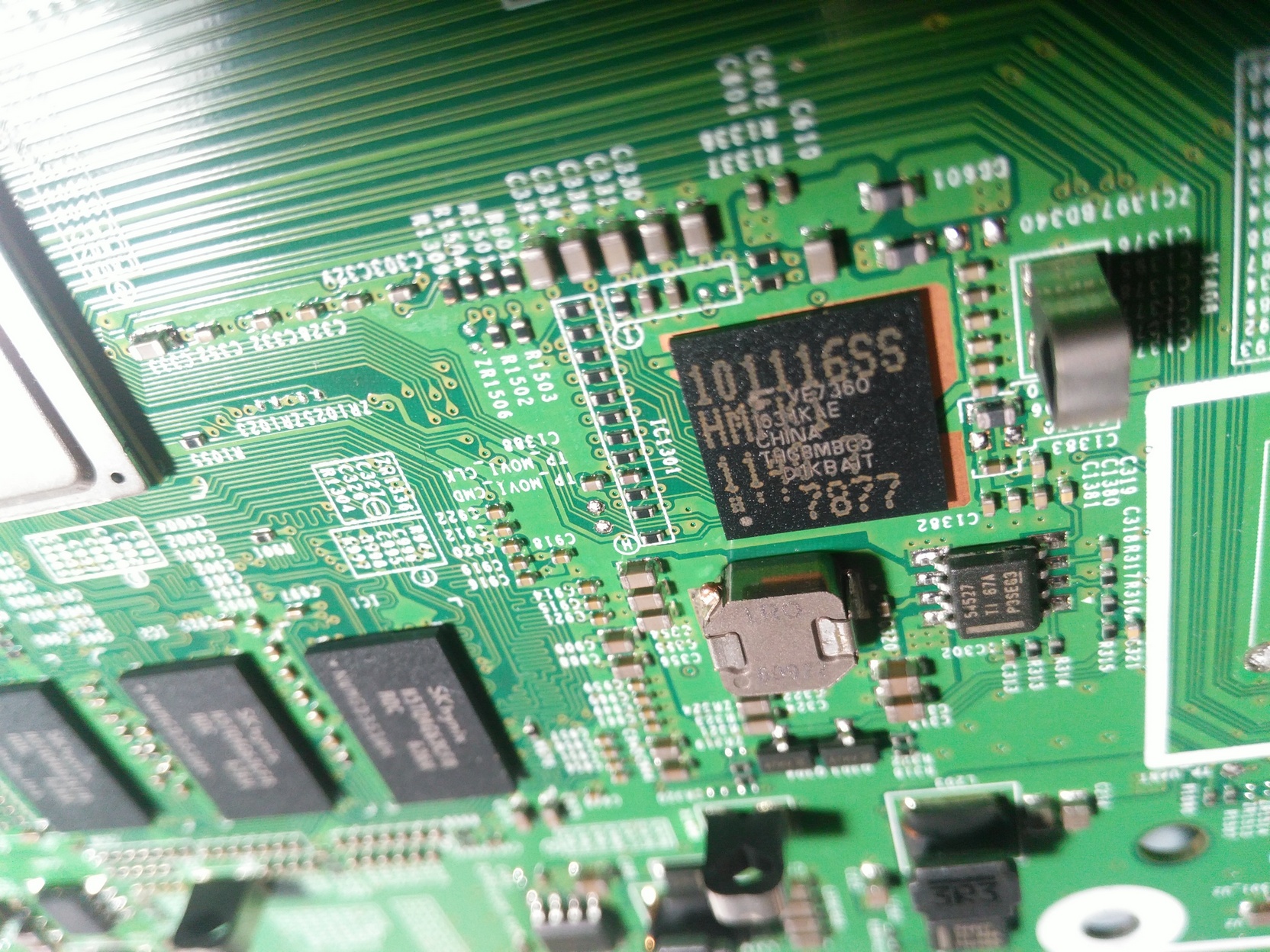

EMMC CID: 110100303034474530007053566F8371
EMMC CSD: D05E00320F5903FFFFFFFFE7924000E3
EMMC NAME: 004GE0 , Vendor: TOSHIBA , S/N: 7053566F , rev. 00
EMMC NAME (HEX): 303034474530
EMMC ROM 1 (Main User Data) Capacity: 3776 MB (0000EC000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 2048 KB (000000200000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 KB (000000080000)
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot from: ROM2 (Boot partition 1) , width: 8 bit
Boot Partition [179] / Bus Config [177] : 0x48 / 0x02
H/W Reset Function [162] : 0x01 , RST_n signal is permanently enabled
Partition setting [PARTITION_SETTING_COMPLETE] : 0x00
EMMC Permanent / Temporary Write Protection : No / No
EMMC CID: 110100303034474530007053566F8371
EMMC CSD: D05E00320F5903FFFFFFFFE7924000E3
EMMC NAME: 004GE0 , Vendor: TOSHIBA , S/N: 7053566F , rev. 00
EMMC NAME (HEX): 303034474530
EMMC ROM 1 (Main User Data) Capacity: 3776 MB (0000EC000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 2048 KB (000000200000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 KB (000000080000)
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot from: ROM2 (Boot partition 1) , width: 8 bit
Boot Partition [179] / Bus Config [177] : 0x48 / 0x02
H/W Reset Function [162] : 0x01 , RST_n signal is permanently enabled
Partition setting [PARTITION_SETTING_COMPLETE] : 0x00
EMMC Permanent / Temporary Write Protection : No / No
